Description
Welder SeriesLE31MP
Manufacturer Part NumberK3461-1
Process
- MIG Welding (GMAW)
- Flux-Cored Welding (FCAW)
- Stick Welding (SMAW)
- TIG Welding (GTAW)
PhaseSingle-Phase
Input Frequency60 Hz
PolarityDC
Input Voltage120V AC
Welding Power Source TypeCV
Minimum Amperage (Stick)25 A
Maximum Amperage (Stick)90 A
Rated Output @ Duty Cycle (Stick)80 A @ 23.2 V, 60%
Minimum Amperage (MIG)20 A
Maximum Amperage (MIG)95 A
Rated Output @ Duty Cycle (MIG)95 A @ 18.75 V, 60%
Minimum Amperage (TIG)10 A
Maximum Amperage (TIG)120 A
Rated Output @ Duty Cycle (TIG)115 A @ 14.6 V, 60%
Maximum Input Current20 A
Effective Input Current20 A @ 120V DC (Single-Phase)
For Minimum Material Thickness1/20 in (Aluminum); 1/20 in (Stainless Steel); 1/40 in (Mild Steel)
For Maximum Material Thickness1/4 in (Aluminum); 1/4 in (Stainless Steel); 5/16 in (Mild Steel)
For Wire Type
- Flux-Cored
- Solid
Minimum Wire Diameter0.025 in (Flux-Cored)
Maximum Wire Diameter0.035 in (Flux-Cored)
Minimum Wire Feed Speed40 in/min
Maximum Wire Feed Speed500 in/min
Includes
- (3) 0.025 in Tapered Contact Tips (KH831)
- (3) 0.035 in Tapered Contact Tips (KH833)
- 0.025 - 0.035 in Dual Track Drive Roll for MIG & Flux-Cored Welding (KP2948-1)
- Gas Nozzle for MIG Welding (KH835)
- Gasless Nozzle for Flux-Cored Welding (KH836)
- Harris 3000290 Gas Regulator (S25805) & 52 in Hose for use with Argon/Carbon Dioxide Blend Gases
- Magnum Pro 100L Gun & 10 ft Cable Assembly with Brass Connection & 8-Pin Trigger Connector (K530-7)
- Sample Spool of 0.025 in SuperArc L-56 MIG Wire
- Sample Spool of 0.035 in Innershield NR-211-MP Flux-Cored Wire
Overall Depth13.61 in
Overall Height8.91 in
Overall Width18.11 in
Weight34.5 lb
UNSPSC23171508
Country of OriginMexico (subject to change)
- Product Description
-

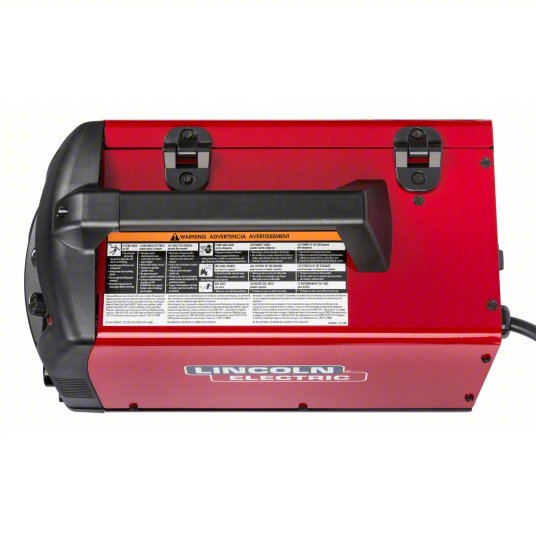

The Lincoln LE31MP MIG/stick package comes with a power source and includes a MIG gun, sample spools of solid and flux-cored wire, a stick electrode holder with cable, a work cable with clamp, a flow gauge/regulator, and a gas hose. Please see the product detail page for the full list of equipment included with each product.
